b. Slurm Accounting 🪄

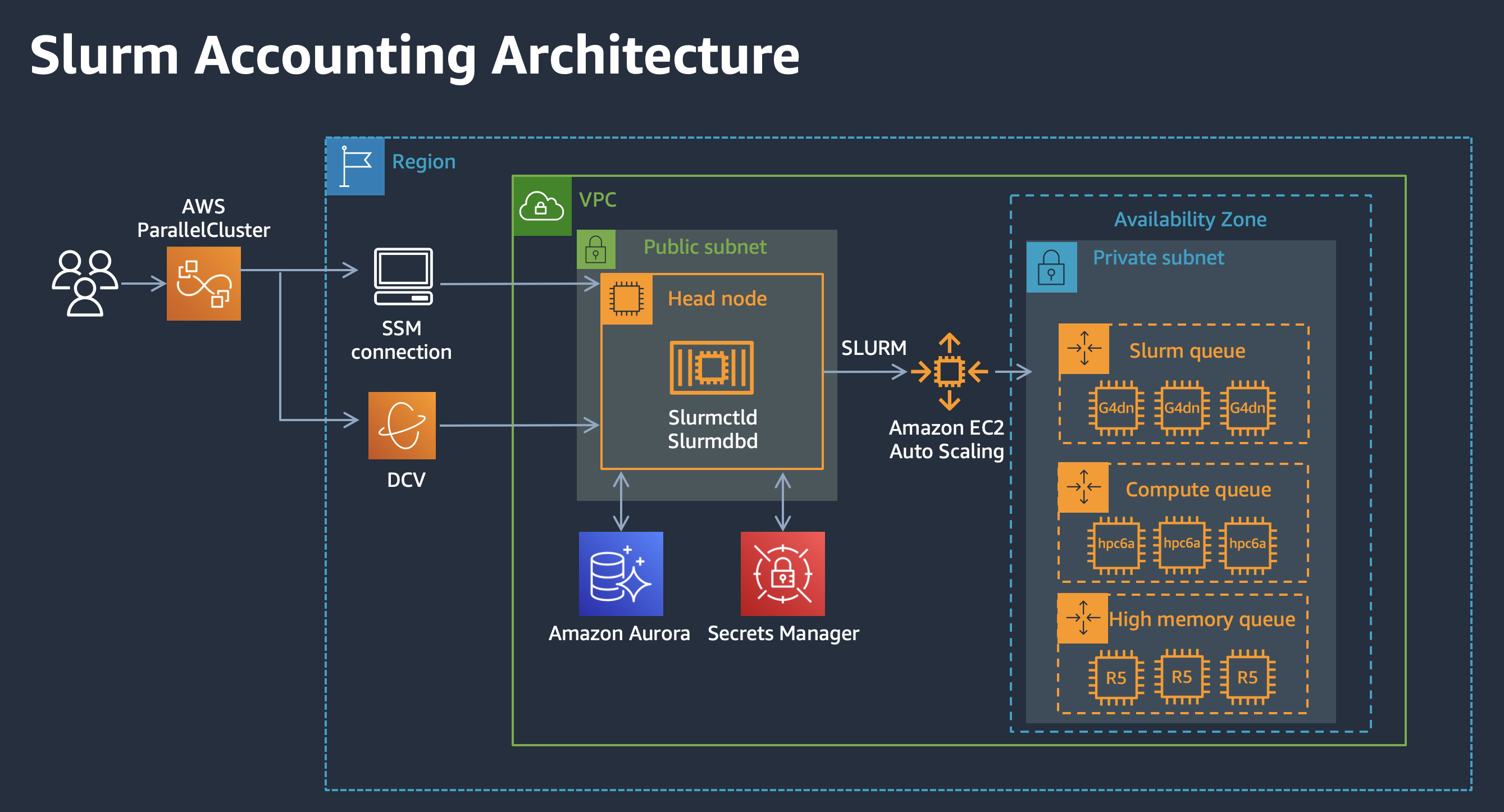

Accounting Architecture

In this tutorial we will work through setting up Slurm Accounting. This is a pre-requisite for many features within Slurm, including job resource tracking and Slurm Federation. Starting in 3.3.0 Slurm accounting is setup directly in the ParallelCluster UI interface. This tutorial assumes you’re creating a cluster >= 3.3.0.

Step 1 - Setup External Accounting Database

The first requirement is to setup an external database that Slurm can use to store the accounting data. Use the following CloudFormation Quick-Create link to create the database in your AWS account:

Deploy Accounting Database

Change the region in the upper right to create the database in a region separate from us-east-2.

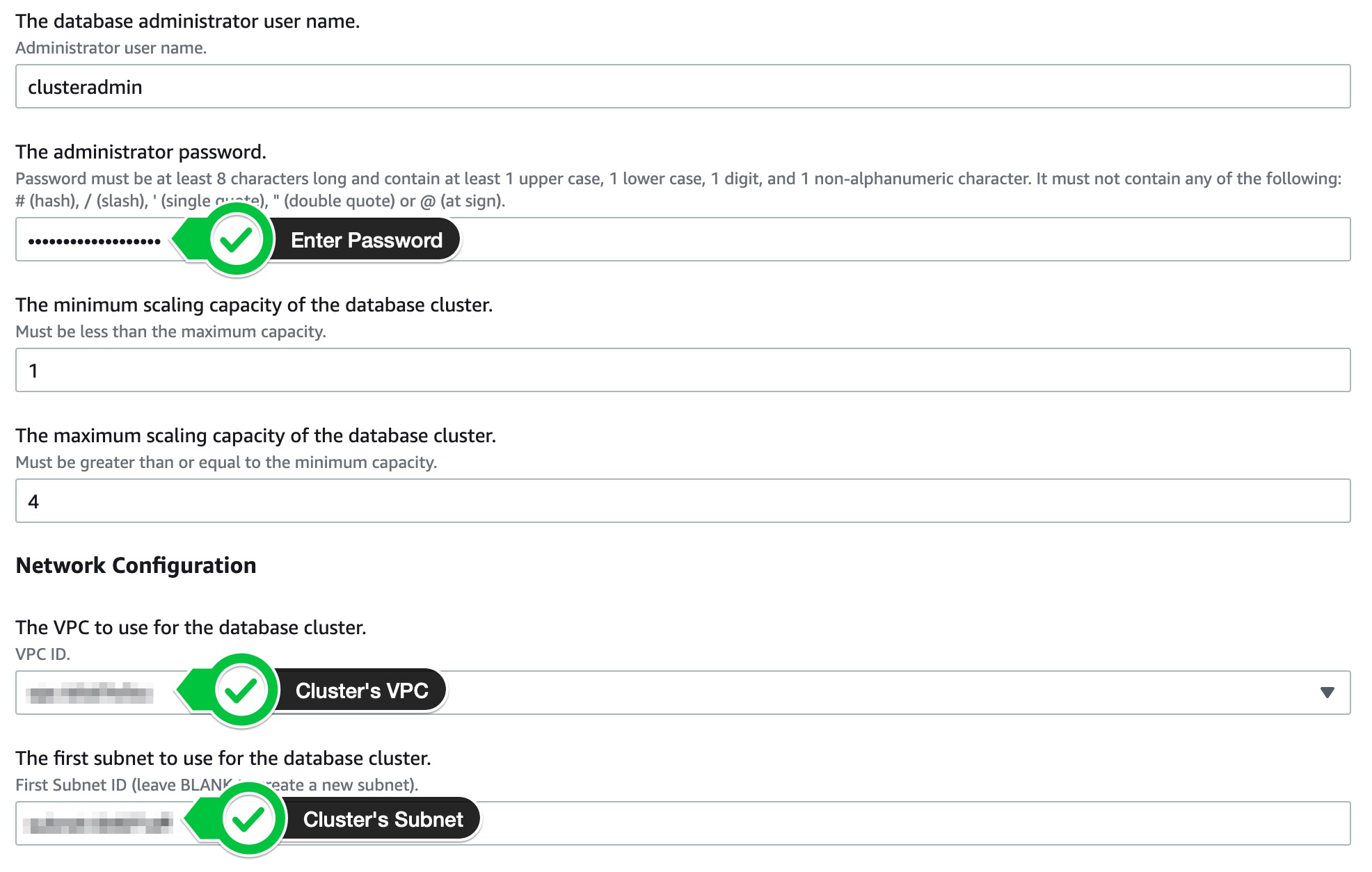

Change the following stack parameters:

  • Password create a password for your database
  • VPC use the same VPC as you plan on creating the cluster in
  • Subnet1 use the same subnet as you plan on creating the cluster in
  • Subnet2 use another subnet from the same VPC. This is for High-Availability (HA) purposes.

CloudFormation Parameters

The rest you can leave as default. Click create and wait ~30 minutes for the stack to create.

Step 2 - Retrieve the outputs from the CloudFormation stack

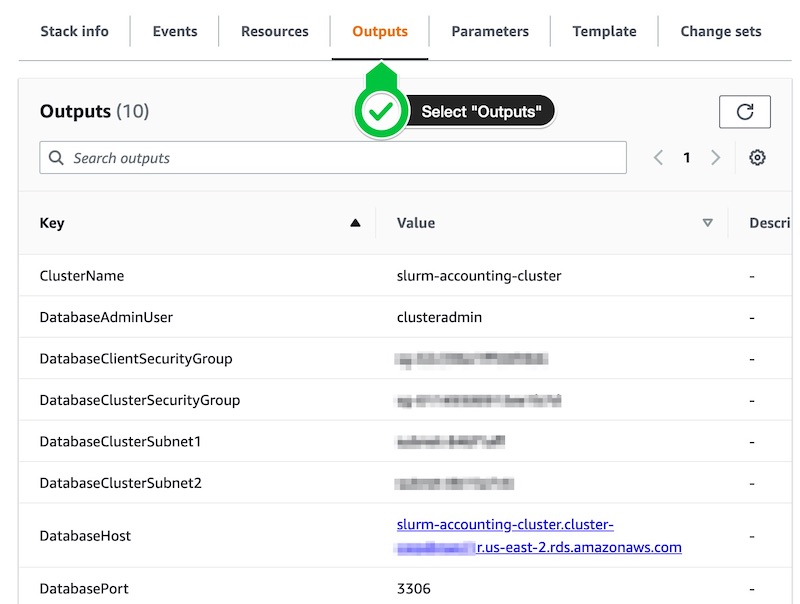

Once the stack creation has completed, go to the Outputs tab of the stack and make note of the properties as they will be used in the creation of your cluster:

CloudFormation Outputs

Step 3 - Create Your Cluster

Next, go to ParallelCluster UI and choose the Create option to create a new cluster.

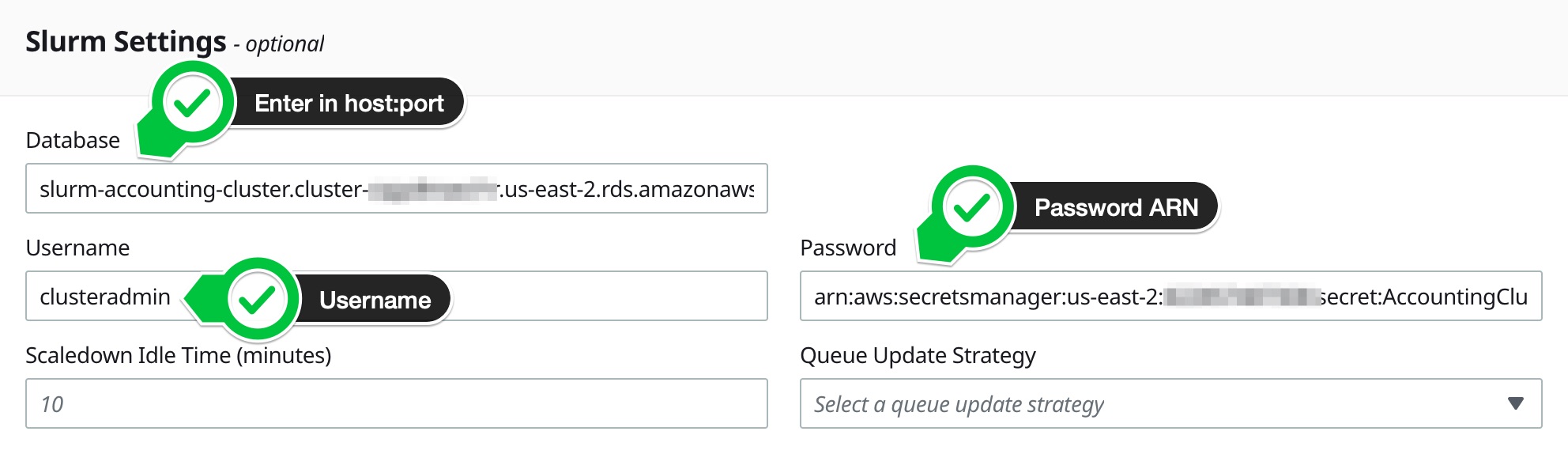

Slurm Settings

Under the HeadNode section, you’ll find a section called Slurm Properties. Enter in information from the cloudformation stack outputs for Database, Username, and Password, you can use the following mapping to go from CloudFormation to ParallelCluster UI:

Parameter CloudFormation Stack Output
Database DatabaseHost:DatabasePort
Username DatabaseAdminUser
Password DatabaseSecretArn
Additional Security Groups DatabaseClientSecurityGroup

Slurm Settings

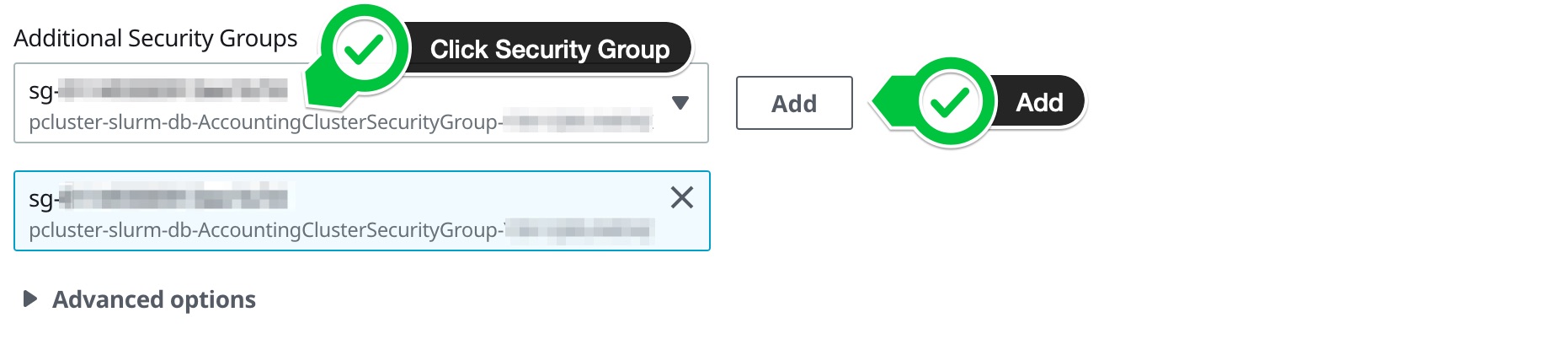

Also on the HeadNode tab, under AdditionalSecurityGroups select the DatabaseClientSecurityGroup security group output from CloudFormation:

Additional Security Groups

Review Config

After you’ve configured the HeadNode, Filesystem and Queues, you’ll be asked to review the config. Here’s an example of what the SlurmSettings section should look like:

SlurmSettings:
    Database:
      Uri: slurm-accounting-cluster.cluster-hash.us-east-2.rds.amazonaws.com:3306
      UserName: clusteradmin
      PasswordSecretArn: arn:aws:secretsmanager:us-east-2:123456789:secret:AccountingClusterAdminSecre-hash2

You’ll see a warning like: Cannot validate secret arn:aws:secretsmanager:us-east-2:1234567890:secret:AccountingClusterAdminSecret due to lack of permissions. Please refer to ParallelCluster official documentation for more information. which can be safely ignored.

Step 5 - Submit a job

Once the cluster has been successfully created, we can submit a job to see that accounting is working properly.

  1. SSH into the Cluster, if you’ve enabled “Virtual Console” you can click on the “Shell” button.
  2. Submit a job with the following command:
sbatch --wrap 'sleep 30'

Step 6 - View the Accounting Tab

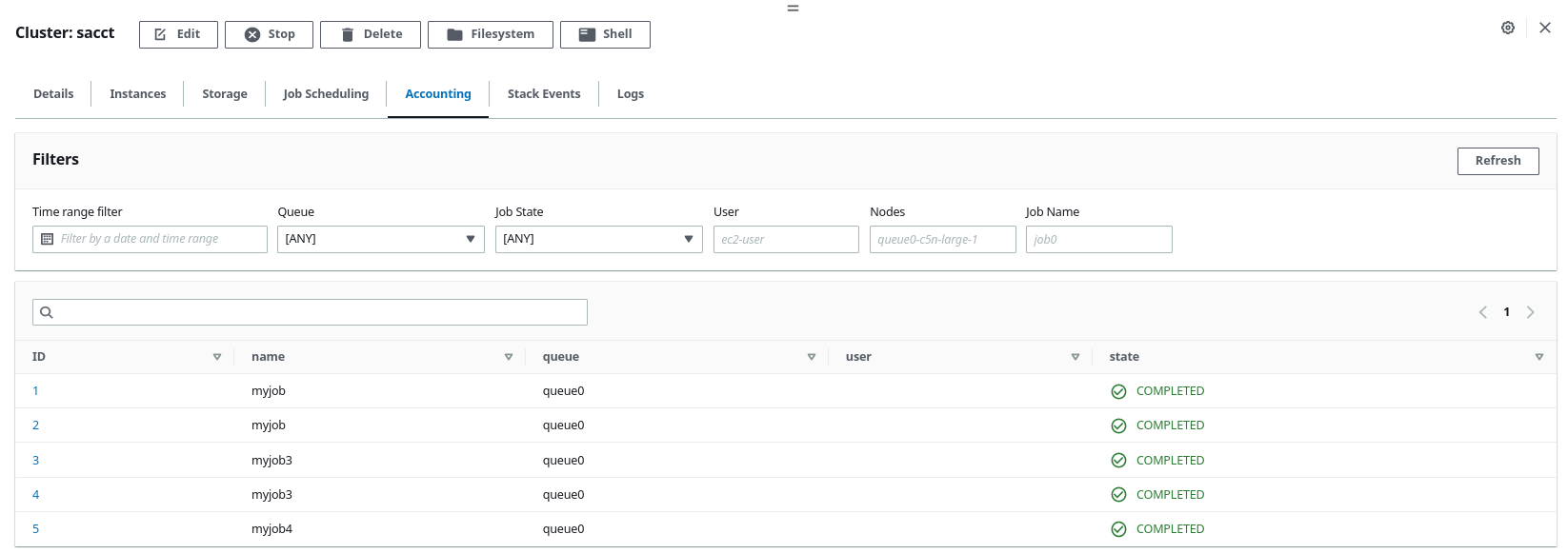

Once you’ve submitted a job, you can see the job information under the Accounting tab

You can use any of the filters at the top to narrow down the number of jobs in the view to select specific jobs.

Accounting Tab

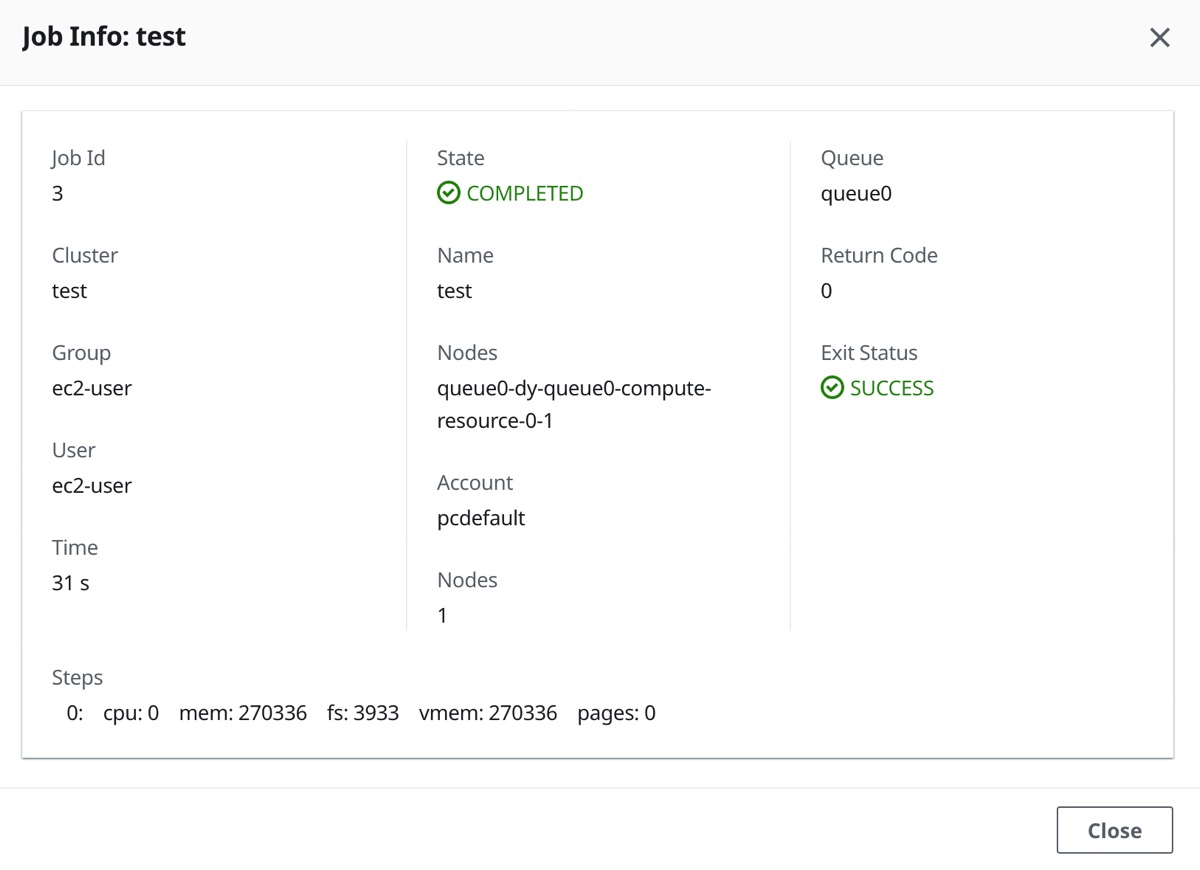

If you choose the Job ID in the left column you can see further detials about the job.

Accounting Detail
